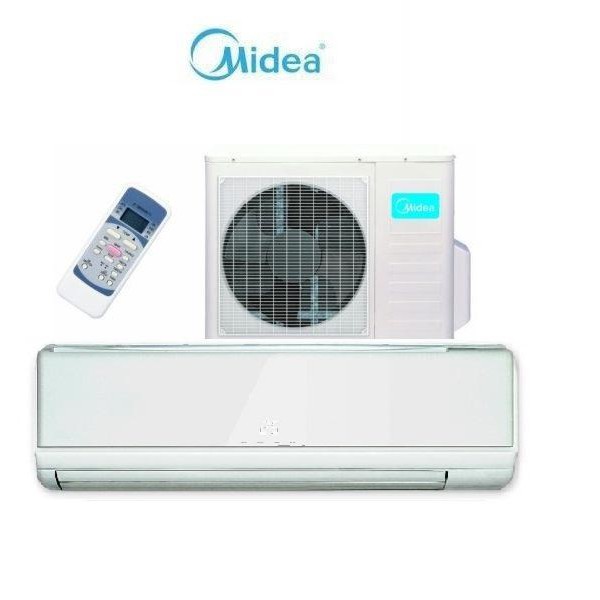

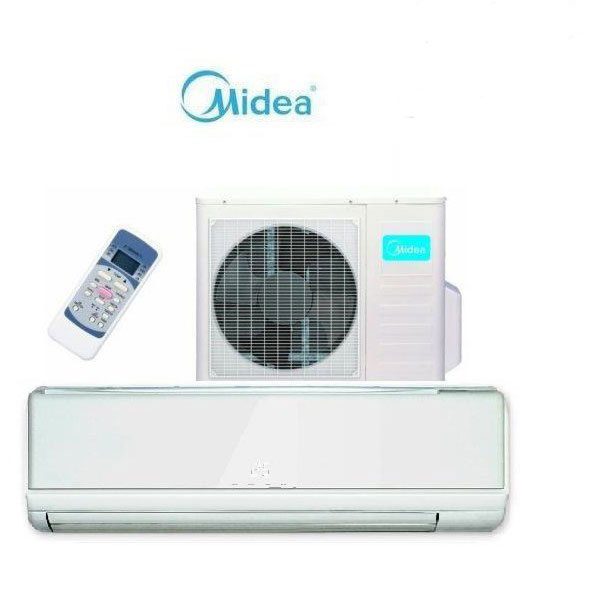

MIDEA 2 Ton Wall Mounted AC

Description

MIDEA 2 Ton Wall Mounted AC

Model No: MSMAD-24 HRN 1

General characteristics

• Cooling capacities:     7.03 kW
• Power in heating mode:     7.33 kW
• Air flow (indoor unit):     1100 m³ / h
• Airflow (outdoor unit):     2500 m³ / h
• The intensity of the humidification:     2.6 l / h

Electrical parameters

• Power supply:     220
• Power consumption during cooling:     2.350 kW
• Power consumption for heating:     2.250 kW
• Operating Current (Cooling):     10.8 A
• Operating Current (Heating):    10.3 A
• Min noise:       39 dB (A)
• Noise level indoor unit dB (A):      39/45/49
• Noise level outdoor unit dB (A):    62
• • Energy efficiency class (cooling):  C
  • Energy efficiency class (heating):  C
  • Factor EER (cooling):     3.00
  • Factor COP (heating):     3.26
  Control
  • Remote control
  • On / Off Timer
  Installation (erection)
  • The maximum length of highway:     25 m
  • Maximum height difference:       10 m
  • The diameter of the liquid pipe (mm):      9.52 (3/8)
  • The diameter of the gas pipe (mm):      15.88 (5/8)
  • The diameter of the drain:      16 mm
  • Factory refrigerant charge:     1600 g
  The indoor unit
  • Dimensions indoor unit (W × H × D), mm:    1030 × 315 × 218
  • Weight indoor unit:    12.0 kg
  Outdoor Unit
  • Dimensions outdoor unit (W × H × D), mm:     845 × 700 × 320
  • Weight outdoor unit:    50.0 kg
  Operating temperature range
  • Cooling:   from + 18 ° to + 43 ° C
  • Heat:         from -7 ° C to + 24 ° C

Terms and Condition and Installation Details

Electric Power Point : – Must be provided from your side near AC
• Installation Charge : – N Rs.4000=00 per set for 0.75 & 1.0 Ton up-to 12 Feet Piping.
• N Rs.6000.00 per set for 1.5 & 2.0 Ton up-to 12 Feet Piping.
• N Rs.8000.00 per set Above 2.0 Ton up-to 12 Feet Piping.
• N Rs.350.00/ft. shall be charged extra for piping
• Exceeding 12 ft. up-to 1.5 Ton and N Rs.450.00/ft for 2.0 Ton And above.
• VAT 13% :- Extra as applicable.
• Civil & False Ceiling Work : – From Your Side (If required)
• Chipping Work : – If done from our side free up-to 5 Fits and Rs.55/running feet shall be charged extra for chipping works exceeding 5 fits.
• Metallic Angle Frames : – If provided from our side Rs.1000.00 up to 1.5 Ton and Rs.1500.00 for 2.0 Ton and Above.
• PVC Duct : – N Rs.1,200.00 per pcs.
• Warranty : – 12 Months for both Service and all Spare parts against manufacturing Defects.
• Availability of Spare parts : – Easily available for Minimum of next 07 Years.
• AMC : – Available After Warranty Period.
• Delivery : – Within a week from the date of Confirmation.
• Payment : – 80 % advance with your P.O.
• 20% after Complete Installation.
• Offer Validity : – 15 Days from the date of offer.
